Giant clear halite cubes in the Merkers Mine Photo Source : Thomas Witzke
Coordinates : 50°49'N , 10°07'E : Merkers potash mine, Wartburgkreis, Thuringia, Germany
To see the Merkers Mine on Google Earth, please click here.
Giant crystals tend to occur in remote areas, which are difficult
to visit even these days. Others places are strictly protected with only very limited
access to scientists and privileged people. Or once famous giant crystal places are simply mined out since long time.
The Merkers potash mine is different and can be easily visited by everybody.
If you feel in the right mood to experience an outstanding underground mine, you can
go down the Merkers shaft. Apart from the thrill of experiencing a preserved
potash mine with its fascinating machinery and the reconstructed
"gold vault" of the Third Reich you are allowed to have a good look into
the largest known salt crystal cave in Middle Europe. Halite salt rock is generally a very ductile type of rock, that is, under pressure
it tends to flow slowly, until the salt will fill any voids available. An left behind open stope in a salt
mine will normally shrink to a mere small hole in just a hundred years ! So the miners in the 750 meter deep Merkers mine were really surprised when they discovered a large natural cave at that depth. More - the cave was partly
filled with giant halite cubes up to more than 1 meter size ! Knowing, that the government of socialistic Eastern Germany always was
keen to sell outstanding mineral specimen in exchange for hard Deutschmark to the West, the miners deciced
to seal off the opening to the cave and wait for better times. After the collapse of the GDR in 1990 the cave was opened up again and,
while potash production in the mine was curtailed and finally stopped,
it was decided to turn the whole mine into a mining museum. So here we are :
One of the very few giant crystal localities which is a dedicated tourist
attraction : the Erlebnisbergwerk Merkers. The formation of this extraordinary halite cubes is - notwithstanding
their size - quite simple. Whereever there is free space in a salt mine,
the ubiquitous migrating salt brines tends to crystallize on the walls of this space.
Mostly these crystals are only small due to the small space available.
In this case however the available space was large and so the crystals could grow
to giant dimensions, not even filling up the whole
cave.
1.10 meter size salt cubes confirmed Crystallisation from saturated salt brines in anhydrite cave, which has been formed tectonically in brittle anhydrite formation.
Museum mine, tourists are welcome to visit the crystal cave. A rare opportunity for a family friendly visit of a potash mine and giant crystals 750 meter underground.
The most comprehensive publication covering the giant salt crystals in Merkers is :
PIPPIG, M. (1992) : Über das Vorkommen einer Kristallsalzschlotte im Kalibergwerk Merkers
in : Kali & Steinsalz, Bd. 11, Heft 1/2 p.2 - 7
Information about the Merkers mine museum, its fascinating history, opening times etc. you can find on their website.
Photo documentation work in the Merkers Crystal Cave 2005
Photo Source : Frank de Wit

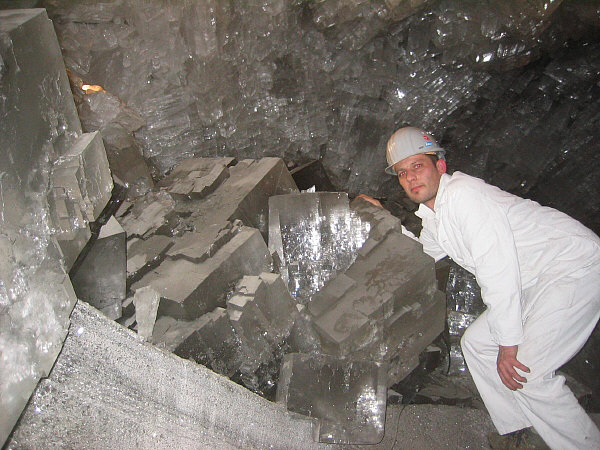

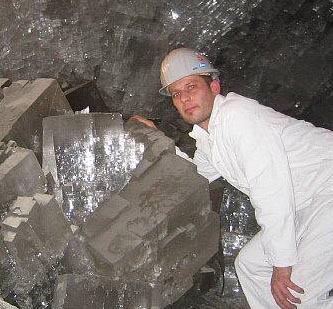

Frank and the giant halite cubes
Photo Source : Thomas Witzke

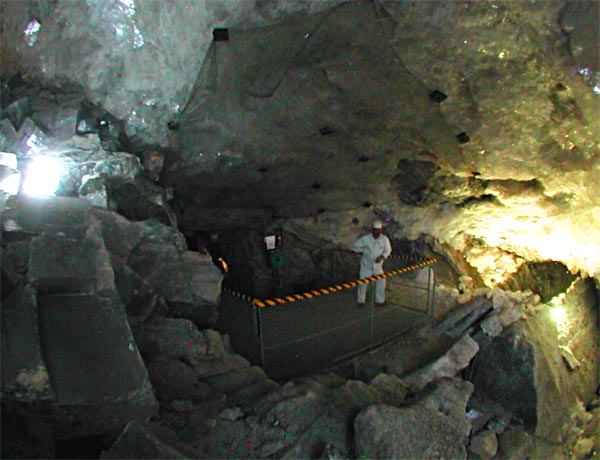

Visitor platform in the cave of the giant halites
Photo Source : Thomas Krassmann

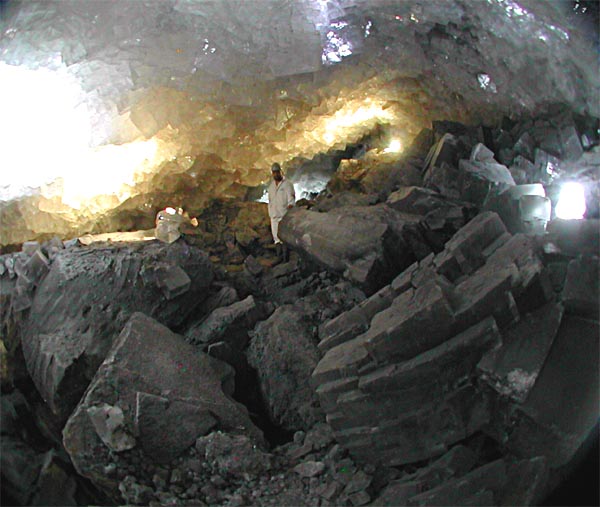

Thomas Witzke among giant salt cubes
Photo Source : Thomas Krassmann

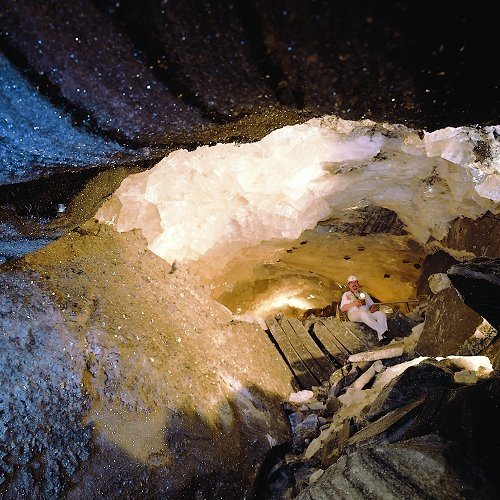

Relaxing salt miner in the "Salzschlotte" (halite cave)
Photo Source : Erlebnisbergwerk Merkers
Mineralogy :
Halite crystals in anhydrite/gypsum cave
Crystal Size :
Geology & Origin :
Current status :
Remarks :
